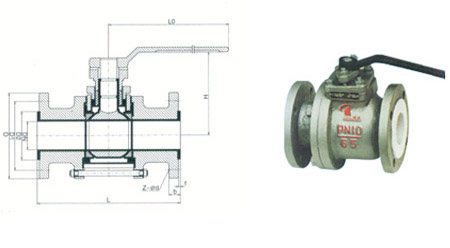

Q41F46-6型球阀 |
|
|
|
Q41S型球阀（直通二段式） Q341S型球阀（直通二段式）
|
型号 |
工作温度 |
|
Q41F46 Q341F46 Q641F46 Q941F46 |
≤150℃ |
|
Q41F3 Q341F3 Q641F3 Q941F3 |
≤120℃ |
|
Q41F2 Q341F2 Q641F2 Q941F2 |
≤120℃ |
|
Q41F Q341F Q641F Q941F |
≤100℃ |
|
Q41GXPO Q341GXPO Q641GXPO Q941GXPO |
≤110℃ |
|
Q41U Q341U Q641U Q941U |
≤100℃ |
主要连接尺寸及重量
|
公称通径 |
标准值 |
参考值 |
|
DN
mm |
L |
D |
D1 |
D2 |
b |
f |
z-φd |
H1 |
H2 |
H3 |
H4 |
L1 |
D0 |
D3 |
Wkg |
|
PN1.0/PN1.6(MPa) |
|
15 |
115 |
95 |
65 |
45 |
12/14 |
2 |
4-φ14 |
98 |
|
|
|
150 |
|
|
2.6 |
|
20 |
145 |
105 |
75 |
55 |
14/16 |
2 |
4-φ14 |
100 |
|
|
|
150 |
|
|
3.2 |
|
25 |
160 |
115 |
85 |
65 |
14/16 |
2 |
4-φ14 |
102 |
|
|
|
150 |
|
|
4.3 |
|
32 |
165 |
135/140 |
100 |
76 |
16/18 |
2 |
4-φ18 |
127 |
|
|
|
200 |
|
|
5.5 |
|
40 |
180 |
145/150 |
110 |
84 |
16/18 |
3 |
4-φ18 |
130 |
|
|
|
200 |
|
|
7 |
|
50 |
200 |
160/165 |
125 |
99 |
16/20 |
3 |
4-φ18 |
146 |
|
|
|
235 |
|
|
9.8 |
|
65 |
220 |
180/185 |
145 |
118 |
18/20 |
3 |
4-φ18 |
165 |
|
|
|
300 |
|
|
16 |
|
80 |
250 |
195/220 |
160 |
132 |
18/20 |
3 |
4-φ18
/8-φ18 |
188 |
220 |
|
|
360 |
150 |
|
20 |
|
100 |
280 |
215/220 |
180 |
155 |
20/22 |
3 |
8-φ18 |
220 |
240 |
260 |
450 |
400 |
300 |
220 |
34 |
|
125 |
320 |
245/250 |
210 |
184 |
22/22 |
3 |
8-φ18 |
253 |
270 |
350 |
520 |
400 |
300 |
220 |
57 |
|
150 |
360 |
280/285 |
240 |
210 |
22/24 |
3 |
8-φ23 |
290 |
298 |
350 |
520 |
400 |
300 |
220 |
92 |
|
200 |
400 |
335/340 |
295 |
265 |
22/24 |
3 |
8-φ23
/12-φ23 |
345 |
355 |
425 |
620 |
450 |
300 |
360 |
160 |
|
250 |
550 |
390/405 |
350 |
320 |
24 |
3 |
12-φ23 |
|
435 |
485 |
705 |
|
300 |
360 |
220 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
主要连接尺寸及重量
|
公称通径 |
标准值 |
参考值 |
|
DN
Mm |
L |
D |
D1 |
D2 |
b |
f |
z-φd |
H1 |
H2 |
H3 |
H4 |
L1 |
D0 |
D3 |
W kg |
|
PN2.5(MPa) |
|
15 |
115 |
95 |
65 |
46 |
14 |
2 |
4-φ14 |
98 |
|
|
|
150 |
|
|
2.9 |
|
20 |
145 |
105 |
75 |
56 |
16 |
3 |
4-φ14 |
98 |
|
|
|
150 |
|
|
3.6 |
|
25 |
160 |
115 |
85 |
65 |
16 |
3 |
4-φ14 |
98 |
|
|
|
150 |
|
|
4.7 |
|
32 |
165 |
140 |
100 |
75 |
18 |
3 |
4-φ18 |
116 |
|
|
|
160 |
|
|
5.9 |
|
40 |
180 |
150 |
110 |
84 |
18 |
3 |
4-φ18 |
118 |
|
|
|
200 |
|
|
7.3 |
|
50 |
200 |
165 |
125 |
99 |
20 |
3 |
4-φ18 |
142 |
|
|
|
250 |
|
|
10.3 |
|
65 |
220 |
185 |
145 |
118 |
22 |
3 |
8-φ18 |
164 |
|
|
|
300 |
|
|
17 |
|
80 |
250 |
200 |
160 |
132 |
24 |
3 |
8-φ18 |
188 |
|
|
|
350 |
|
|
26 |
|
100 |
280 |
235 |
190 |
156 |
24 |
3 |
8-φ22 |
198 |
218 |
260 |
450 |
400 |
250 |
220 |
39 |
|
125 |
320 |
270 |
220 |
184 |
26 |
3 |
8-φ26 |
210 |
290 |
350 |
520 |
500 |
250 |
220 |
62 |
|
150 |
360 |
300 |
250 |
211 |
28 |
3 |
8-φ26 |
|
290 |
350 |
520 |
|
300 |
220 |
95 |
QF41S型放料阀
|
型号 |
工作温度 |
|
QF41F46 QF341F46 |
≤150℃ |
|
QF641F46 QF941F46 |
|
QF41F3 QF341F3 |
≤120℃ |
|
QF641F3 QF941F3 |
|
QF41F2 QF341F2 |
≤120℃ |
|
QF641F2 QF941F2 |
|
QF41GXPP QF341GXPP |
≤100℃ |
|
QF641GXPP QF941GXPP |
|
QF41GXPO QF341GXPO |
≤110℃ |
|
QF641GXPO QF941GXPO |
|
QF41U QF341U |
≤100℃ |
|
QF641U QF941U |
主要连接尺寸及重量
|
公称通径 |
标准值 |
参考值 |
|
DN
mm |
L |
D |
D1 |
D2 |
f |
b |
z-φd |
L1 |
H |
W kg |
|
PN1.0(MPa) |
|
40/65 |
165 |
145/180 |
110/145 |
85/118 |
4/4 |
16/20 |
4-φ18/4-M16 |
200 |
130 |
8.3 |
|
50/80 |
178 |
160/195 |
125/160 |
102/132 |
4/4 |
17/24 |
4-φ18/4-M16 |
235 |
145 |
9.2 |
|
80/125 |
203 |
195/245 |
160/210 |
135/185 |
4/4 |
28/22 |
4-φ18/8-M16 |
400 |
184 |
19.5 |
|
|
|
|
